Sample of Propeller Based Industrial Control Board

[John Twomey]

Over the last year Ignite Automation has rolled out a number of Parallax Propeller(TM) based Industrial control boards - I have decided to show one of the first ...

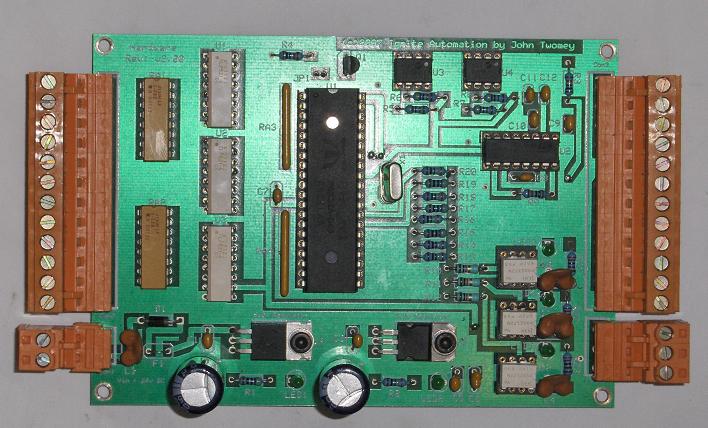

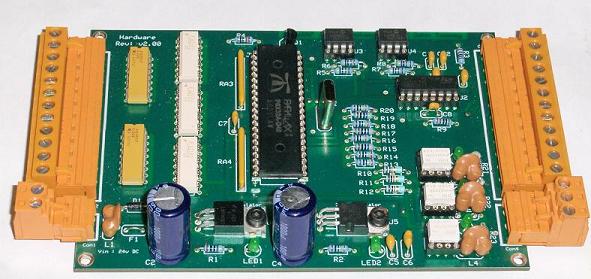

Industrial Control Board





Optio-Coupled (electrically Isolated) I/O lines -
Photo-Voltaic Output (SSRs) capable of 1.5Amp each
RS-232 Communication
VGA Output
LC Suppression
Heavy Ground Planing
Dual EEProm

These have proven to be extra reliable - with absolute Zero errors/faults running 24/7.

More to follow soon ... Industrial Control with multi Coms - Serial / Ethernet / Wireless ethernet ...
