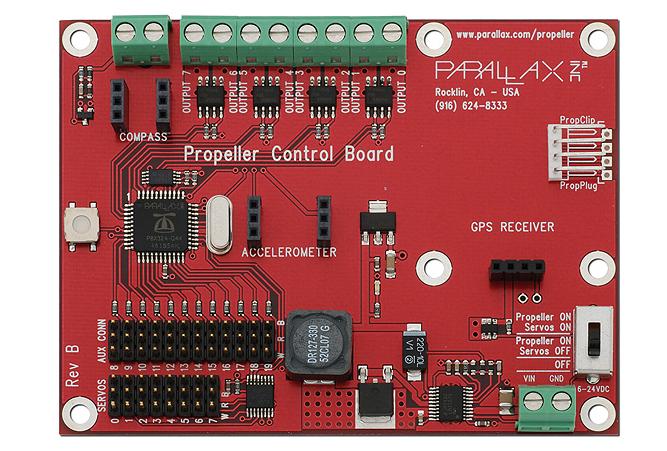

Parallax Propeller Control Board



The Propeller Control Board is a complete solution for controlling robotics platforms. This is the same control board that ships with the Parallax QuadRover robot. The Propeller Control Board is capable of interfacing directly with the Parallax GPS Module, our Hitachi HM55B Compass Module and our Hitachi H48C 3-Axis Accelerometer.  This provides options for tracking position, heading and acceleration for robotic applications.

12 of the Propeller I/O pins are brought out for customer interfacing and control applications, 8 are dedicated to servo control and 8 are dedicated to N-Channel MOSFET outputs, providing high-current drivers for solenoids or other high-current devices. There is also a magento-pickup compatible tachometer input which can be used for measuring the RPM of gasoline engines.

The power switch allows you to turn all power off, only the Propeller on or the Propeller and servos on. There is also a reset button for the Propeller chip. A socketed 5MHz crystal is included






Propeller Control Board Features

  • Propeller P8X32A-Q44 Microcontroller
  • 64 KB EEPROM (32 KB used for program storage)
  • Tachometer input
  • (8) N-Channel MOSFET driven output ports
  • (8) servo output ports
  • (12) auxiliary I/O connections with 10KΩ series protection resistors
  • Three-position power switch (on, Propeller on and servos off, off)
  • Mounting locations for Parallax sensors including our GPS Receiver, Hitachi H48C 3-Axis Accelerometer and Hitachi HM55B Compass Module



Key Specifications

  • Power requirements: 6-24VDC (quiescent current ~10mA @ 12VDC)
  • Communication: Programmed via Prop Plug or Prop Clip
  • Dimensions: 4" W x 3" H x 1/2" D (101.6mm W x 76.2mm H x 12.7mm D)
  • Operating temp range: 32F to 158F (0C to 70C)



Where to get your Propeller Control Board

To purchase or for more information on the Propeller Control Board visit the link below -

Propeller Control Board

Propeller Control Board Documentation

The Parallax Propeller Control Board Documentation

Servo Control Code Servo.zip
